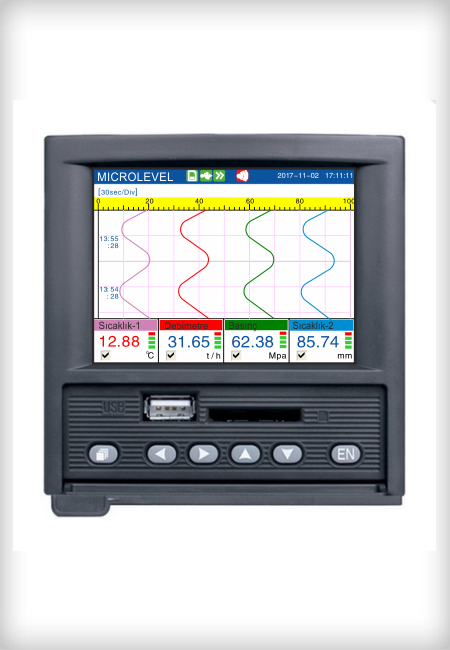

MICROCON DT100 is an indicator and control and recording unit with optional 1-2-3-4 analog mA, mV, R, RTD, TC, FR input which displays the measured values on the screen as %, meter, and cm. The MICROCON DT100 can be used for level based alarm output by relay output at desired values. In addition, the paperless recorder feature is available to store the measured values in its memory at the desired intervals. This data can be monitored in a computer program with free software supplied with the product by buffering from USB memory output at any time, or can be saved by converting it to an Excel format.
Advantages
- 1-2-3-4 isolated university entrances
- High-speed 32-bit ARM processor
- 3,5" 320x240 TFT lighted color LCD display
- 24V DC outputs for sensor supply
- Adjustable relay outputs
- Ability to register measured values (Paperless Recorder)
- Data tracking from the computer with RS485 output and free software
Technical Features
|
Operating voltage
|
85…240V AC
|
|
Input
|
1-2-3-4 analog mA, mV, R, RTD, TC, FR input
|
|
Display
|
-9999…19999
|
|
Measurement error
|
± %0,5
|
|
Relay / Alarm output
|
2 pcs.
|
|
Analog / RS outputs
|
Optional
|
|
Outdoor, storage and shipping temperature
|
-10 … +60 °C
|
|
Ambient humidity
|
%0…95RH
|
|
Adjustment
|
With the button over
|
|
24V DC output for sensor supply
|
Available
|
|
USB input / Data recording
|
Available / Available
|
