Advantages
- Easy assembly
- High sensitivity

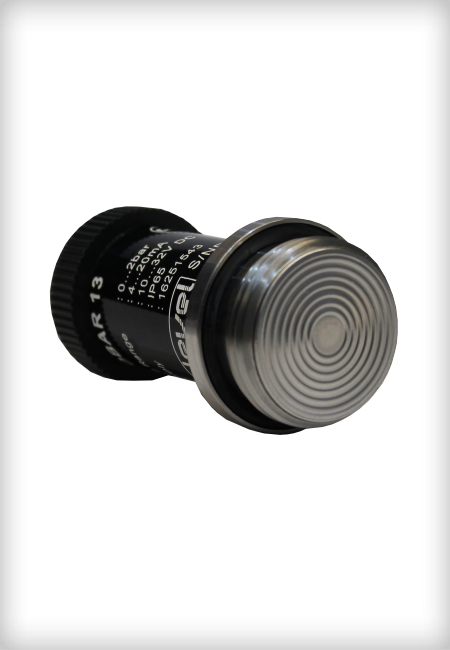

- 316L flush diaphragm
- Robust and maintenance-free construction
Application fields
MICROBAR 13 pressure transmitters with flush diaphragm is used, due to their flat flush diaphragm, in wastewater treatment, many industries such as chemistry and food, dirty water, wastewater, muddy water, dense liquids, hydraulic, fluids with particles content as well as in processes such as air pressure systems.
TECHNICAL SPECIFICATIONS
|
Measurement range
|
-1...0bar, 0...400bar
|
|
Accuracy
|
≤ %0,5 of full scale
|
|
Process connection
|
G1/2", G1"
|
|
Sensor material
|
Stainless steel
|
|
Process temperature
|
-40...85 °C
|
|
Display
|
Optional
|
|
Operating voltage
|
10...32 V DC
|
|
Output
|
4...20mA, 0..10V DC
|
|
Protection class
|
IP65, optional IP67
|
|
Electrical connection
|
DIN 43650, M12 pin connector
|
