Advantages
- Precise non-contact measurement
- Robust and maintenance-free construction
- Sensor with protection class IP68
- Connection with threaded or hanging apparatus
- Turkish as menu language
- Touchscreen 4,3" TFT display
- Ability to select flume type and adjust
- Ability to create a 36-point height/flow curve (linearization table)
- Data recording on SD card
- Monitoring of measured flow rate instantaneously/total
- 24V DC outputs for sensor supply
- Alarm (relay) outputs for high flow
Application fields

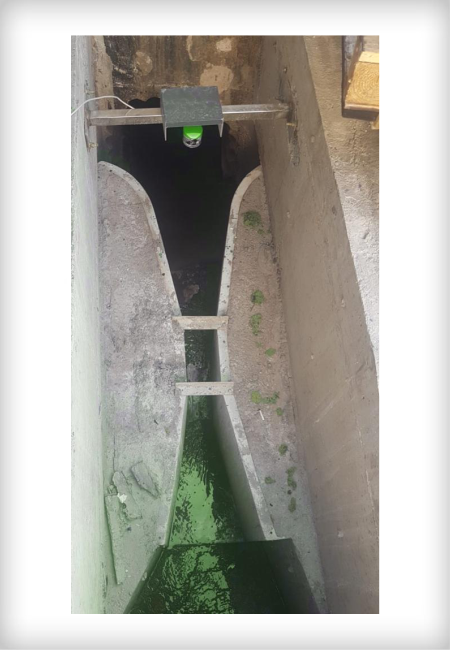

MICROPULS 61 + MICROCON C2.F open channel radar flow measurement set are flow meters that enable the instantaneous flow and total flow to be obtained from the fluid level in conditioned channels (channels with flume structure). It can be used in many flumes such as rectangular flume, U flume, parshall flume, V-Notch and cipoletti. Open channel radar flow meter set consist of radar level sensor Micropuls 61 and flow control & recording device Microcon C2.F.
- Flow measurement of industrial and domestic wastewater open channels
- Flow measurement of open channel lines of municipalities and wastewater treatment plants
- Flow measurement in creeks with a flume structure
TECHNICAL SPECIFICATIONS
MICROPULS 61 Radar Level Sensor
|
Measurement range
|
15m
|
|
Accuracy
|
±3mm
|
|
Process connection
|
Threaded G1 or hanging apparatus
|
|
Process pressure
|
-1 … 3 bar
|
|
Process temperature
|
-40...100 °C
|
|
External environment, storage and transport temperature
|
-40 … +80 °C
|
|
Operating voltage
|
14.… 36 V DC
|

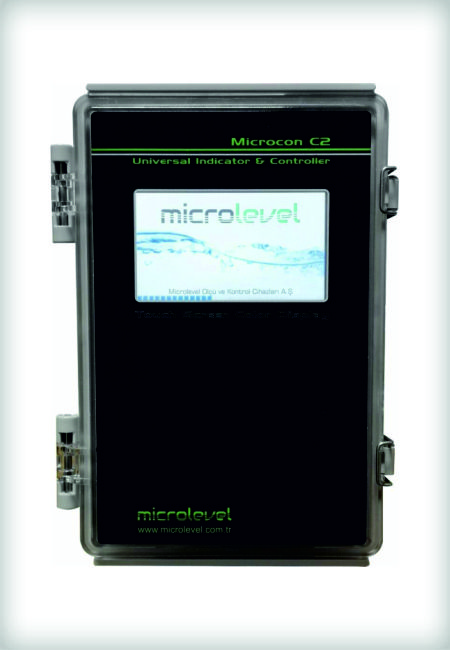

MICROCON C2.F Flow Measurement and Control Device
|
Language
|
Turkish / English
|
|
Display
|
Touchscreen 4,3" TFT display
|
|
Data Record
|
SD card
|
|
Analog Input Signal
|
2 pcs. 4...20mA
|
|
Analog Output Signal
|
2 pcs. 4...20mA
|
|
Alarm Output
|
4 pcs. Relay (5A 250V)
|
|
Digital Input
|
1 pc. Pulse (12-30V DC)
|
|
Digital Output
|
2 pcs. Pulse (24V DC Max. 100mA)
|
|
Connection
|
RS485 MODBUS
|
|
Supply
|
12....30V DC
|
|
Power Consumption
|
Max.6W
|
|
Protection Class
|
IP67
|
|
Cable Input
|
PG11
|
|
Dimensions
|
160x240x53mm
|
|
Material
|
ABS
|
|
Seal
|
Silicone
|
|
Temperature
|
-20...60C
|
|
Humidity
|
<95%
|
