Advantages
- Easy assembly
- Non-contact measurement
- Robust and maintenance-free construction
- Precise measurement
Application fields

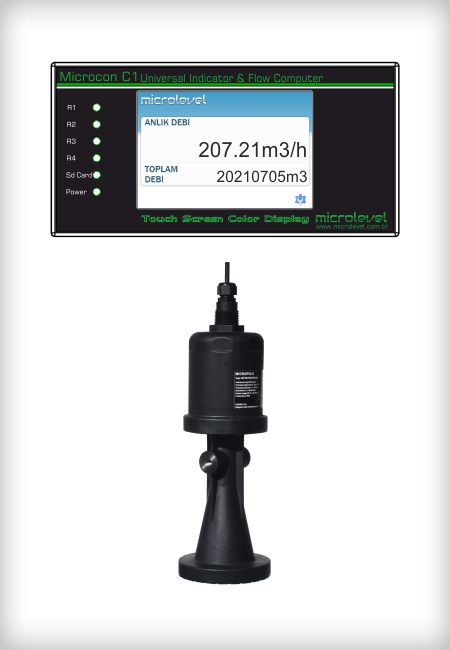

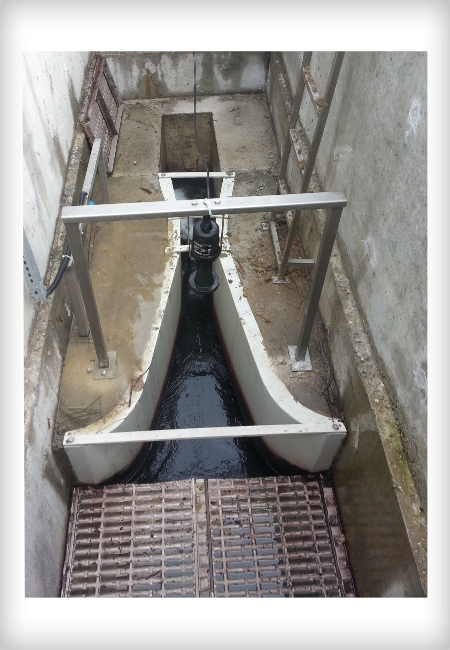

MICROPULS61 + MICROCON C1.F open channel radar flow measurement set are flow meters that enable the instantaneous flow and total flow to be obtained from the fluid level in conditioned channels (channels with flume structure). It can be used in many flumes such as rectangular flume, U flume, parshall flume, V-Notch and cipoletti. Open channel radar flow meter set consist of ultrasonic level sensor Microson61 and flow control and recording device Microcon C1.F.
TECHNICAL SPECIFICATIONS
MICROPULS 61 Radar Level Sensor
|
Measurement range
|
15m
|
|
Accuracy
|
±3mm
|
|
Process connection
|
Threaded G1, DN80 flange or hanging apparatus
|
|
Process pressure
|
-1 … 3 bar
|
|
Process temperature
|
-40...100 °C
|
|
External environment, storage and transport temperature
|
-40 … +80 °C
|
|
Operating voltage
|
14.… 36 V DC
|
MICROCON C1.F Flow Measurement and Control Device
|
Language
|
Turkish / English
|
|
Application
|
Open Channel Flow Measurement
Flow meters with 4...20mA and pulse outputs
|
|
Display
|
Touchscreen 3,5" TFT display
|
|
Data Record
|
SD card
|
|
Analog Input Signal
|
1 pc. Standard, 1 pc. ops. 4...20mA
|
|
Analog Output Signal
|
1 pc. Standard, 1 pc. ops. 4...20mA
|
|
Alarm Output
|
2 pcs. Standard, 2 pcs. ops. Relay (5A 250V)
|
|
Digital Input
|
1 pc. Pulse (12-30V DC)
|
|
Digital Output
|
2 pcs. Pulse (24V DC Max. 100mA)
|
|
Connection
|
RS485 MODBUS
|
|
Supply
|
12....30V DC
|
|
Power Consumption
|
Max. 6W
|
|
Dimensions
|
144x72x65mm
|
|
Material
|
ABS
|
|
Type of mounting
|
Panel Type
|
