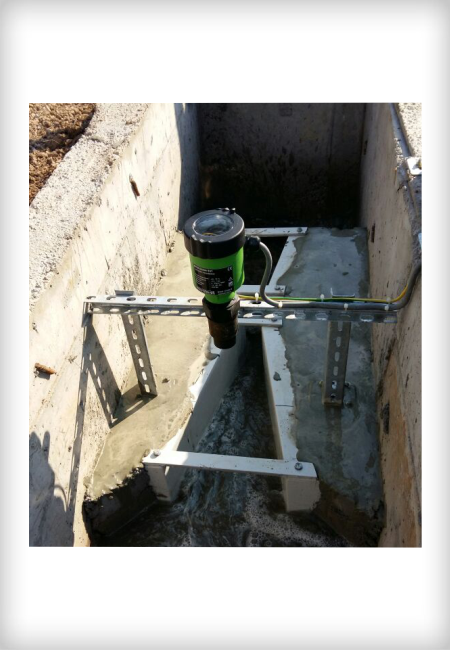

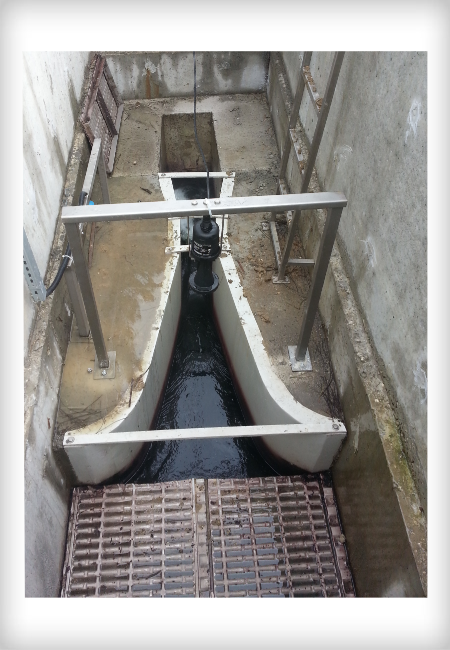

Parshall sluices are one of the most widely used specially shaped open channel equipment for flow measurement in open channels. Parshall is the most preferred sluice due to its low load loss, measuring with a low margin of error and self-cleaning. When choosing a parshall weir, the maximum flow value (peek rate) that can be disposed of instantly from the plant should be taken into consideration. Our productions are made of GRP and used in aggressive wastewater with abrasive chemical content.
|
Throat Width (inch/mm)
|
Max. Flow Transmittance
|
|
1inch / 25,4mm
|
17,93m3/h
|
|
2inch / 50,8mm
|
50,69m3/h
|
|
3inch / 76,2mm
|
125,30m3/h
|
|
6inch / 152,4mm
|
388,50m3/h
|
|
9inch / 228,6mm
|
882,00m3/h
|
